X-YACHTS XC 47

Discover the Ultimate Bluewater Cruiser – The Xc 47

The Xc 47 represents a new generation of XCruising, combining elegance, high performance, and unmatched comfort for true ocean sailing. Designed with shorthanded sailing in mind, this yacht allows couples or small crews to cruise the world safely and effortlessly.

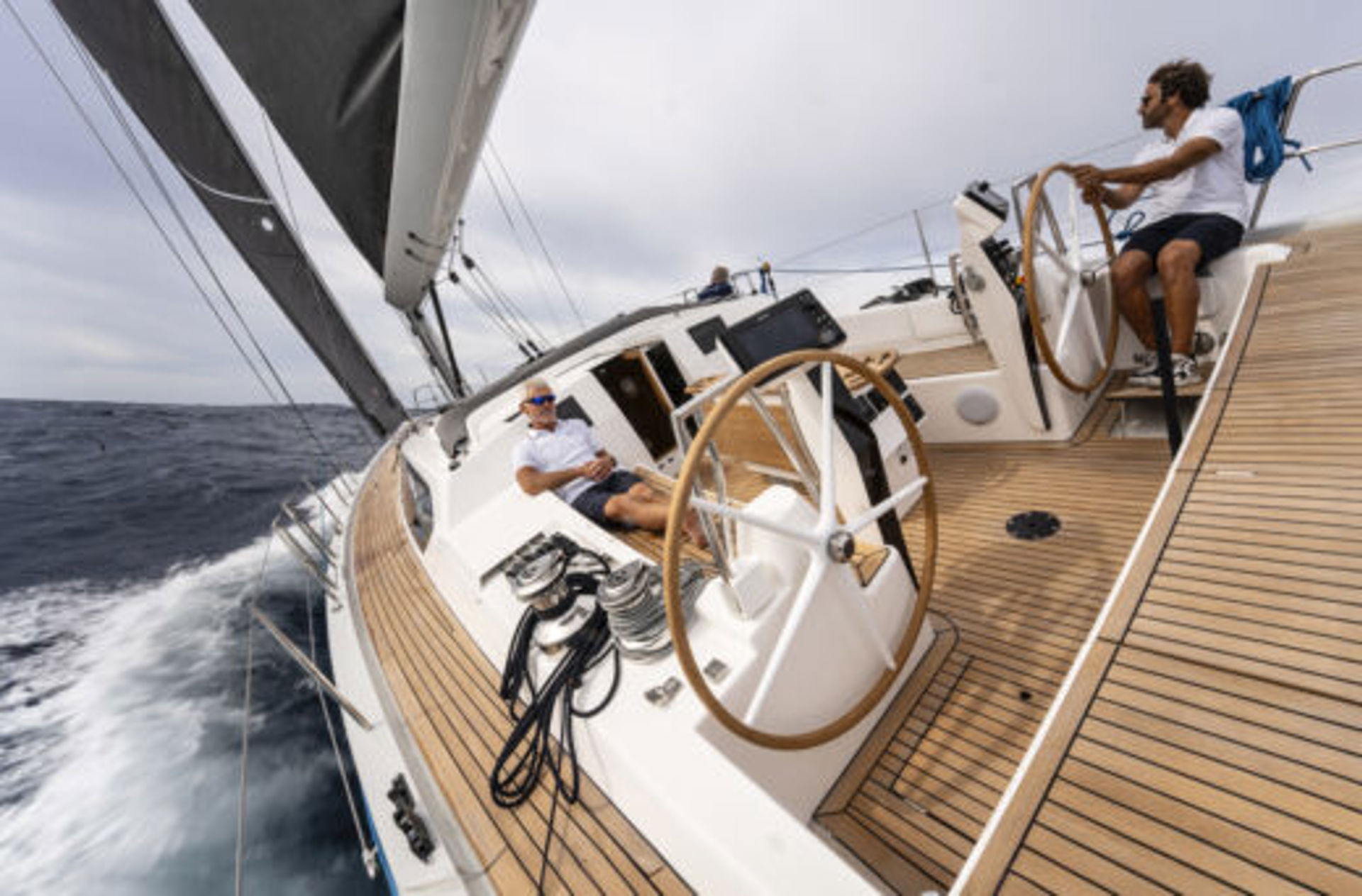

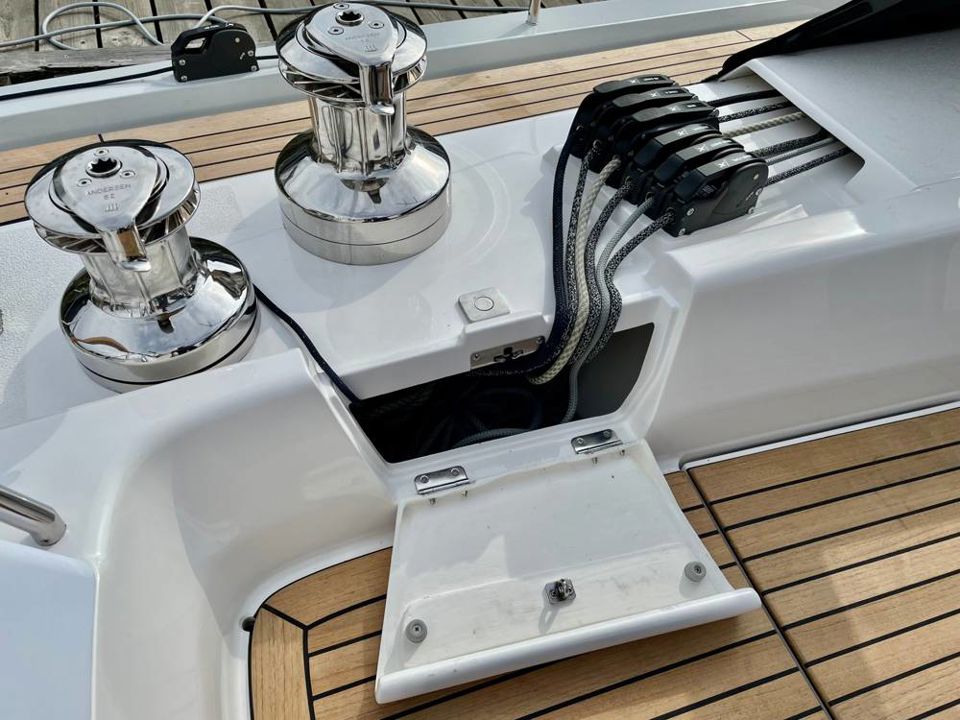

Every detail has been optimized for ease and style. The cockpit layout puts all lines within reach of the helmsman, with four strategically positioned winches and all trim lines led under deck with reachable jammers. The traveller is relocated forward of the sprayhood, creating a spacious, functional cockpit while leaving room for a comfortable living area. A deep, protected cockpit with a closed transom features a full-width aft seating area and sunbathing space – perfect for offshore comfort.

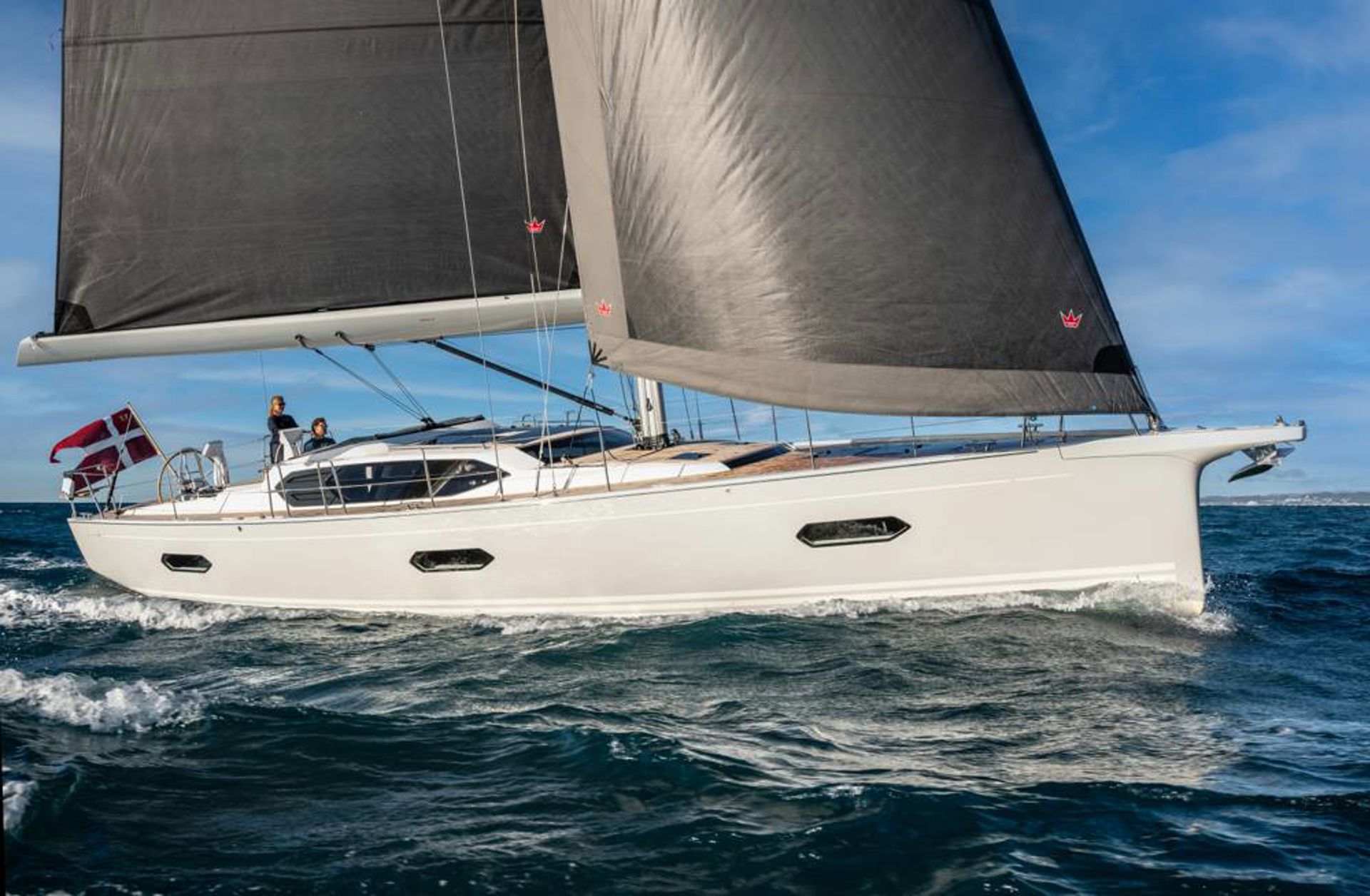

The Xc 47’s hull maintains the deep V-shaped bow, generous rocker, and higher stern overhang of previous Xc models, while the wider aft with a soft chine improves stability, performance, and cabin space. Built from vacuum-infused epoxy/e-glass with carbon reinforcements at high-load areas, this yacht is strong yet light.

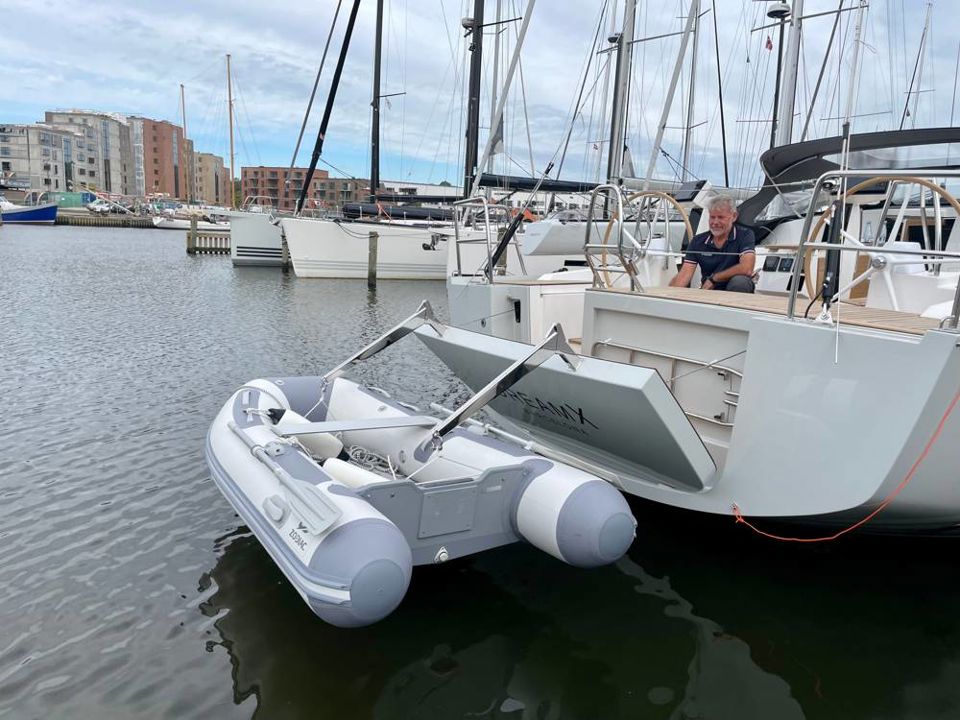

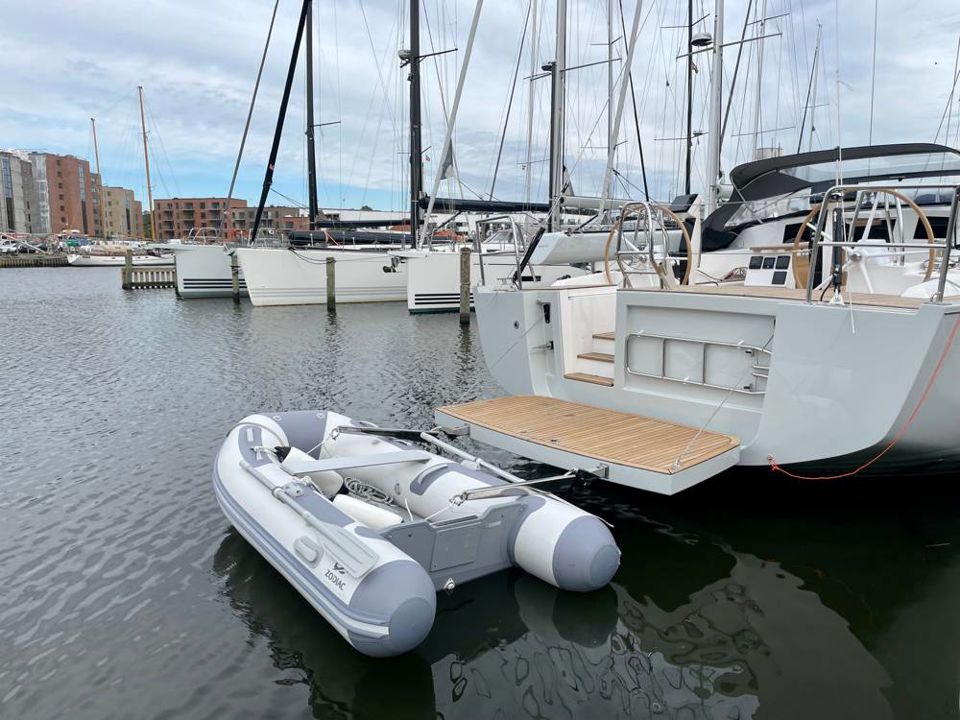

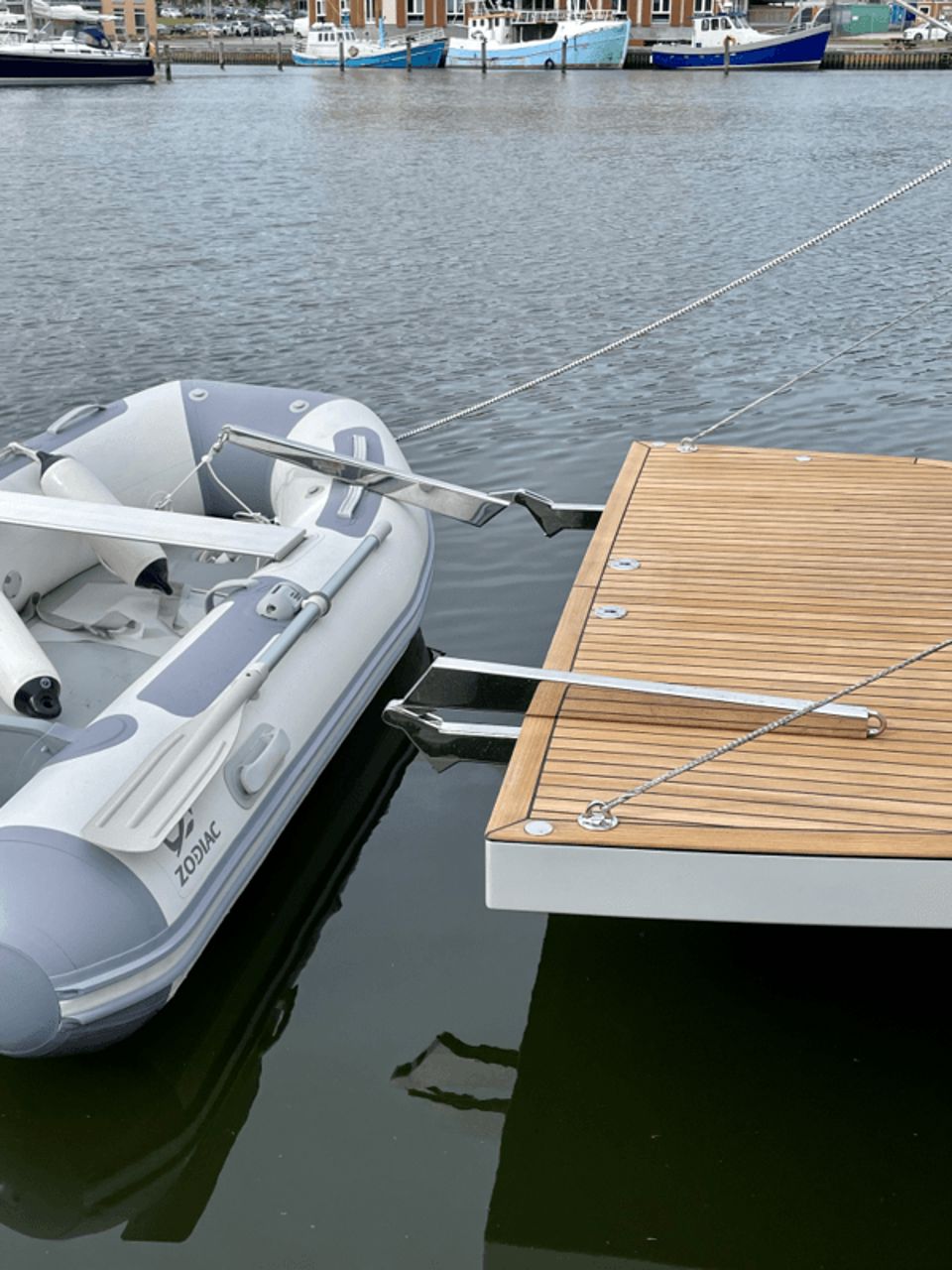

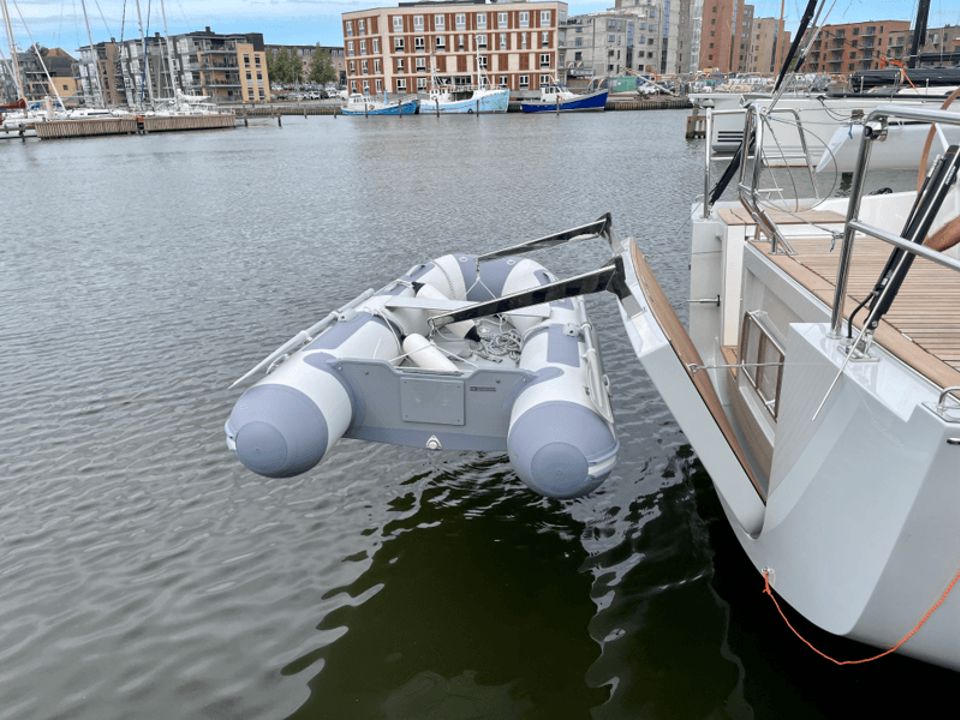

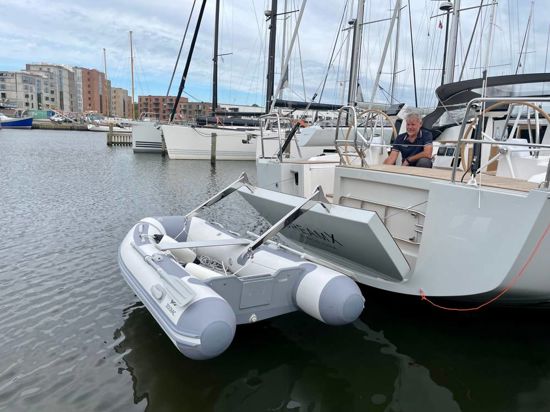

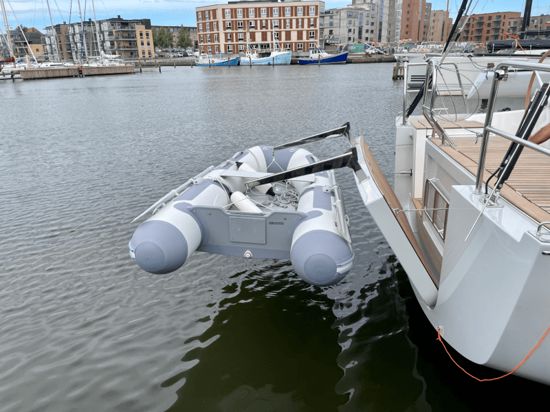

Additional innovations include a longer, integrated bowsprit with optional electric gennaker furler, an optional bow ladder and handrail, and integrated transom davits with “easy launch” function for dinghies. The steering wheels are now 100 cm in diameter with extra space for ultimate comfort.

From advanced hull design to intelligent sail handling and luxurious cockpit features, the Xc 47 is the ideal bluewater cruiser – where safety, performance, and style meet for your next ocean adventure.

Price excludes VAT !

Specification

Produced
2024

Berths
4-8

Length Overall
15.21 m / 49'11"

Length overall
15.21 m / 49'11"

Hull length
14.30 m / 46'11"

Hull beam
4.56 m / 15'0"

Draft
2.30 m / 7'7"

Displacement (ECC)
14500 kg / 31967 lbs

Engine
59 kW / 80 hp (diesel)

Fuel tank
500 ltr / 132 gal(US)

Water tank
640 ltr / 169 gal(US)

Inventory

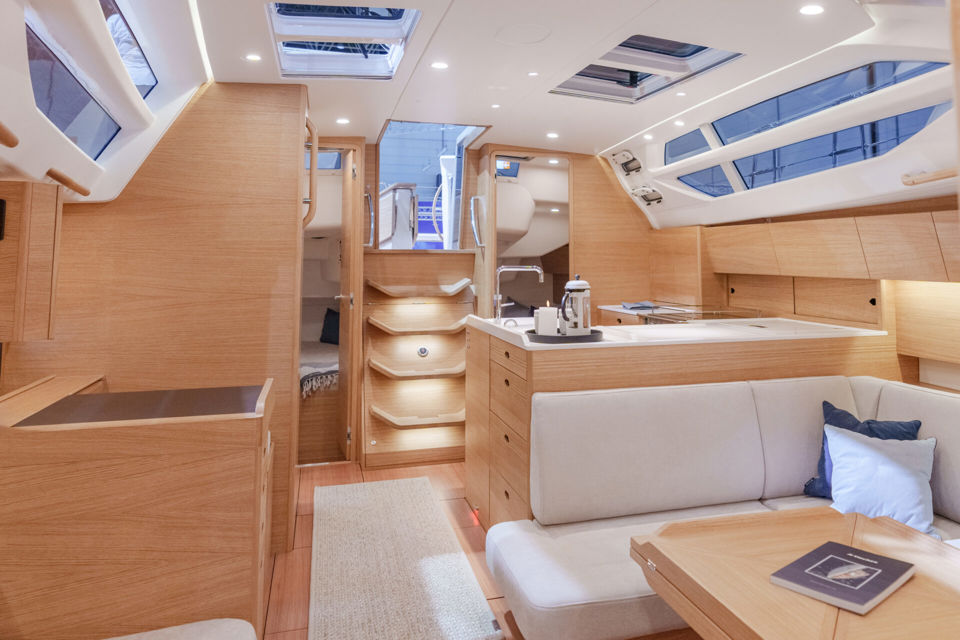

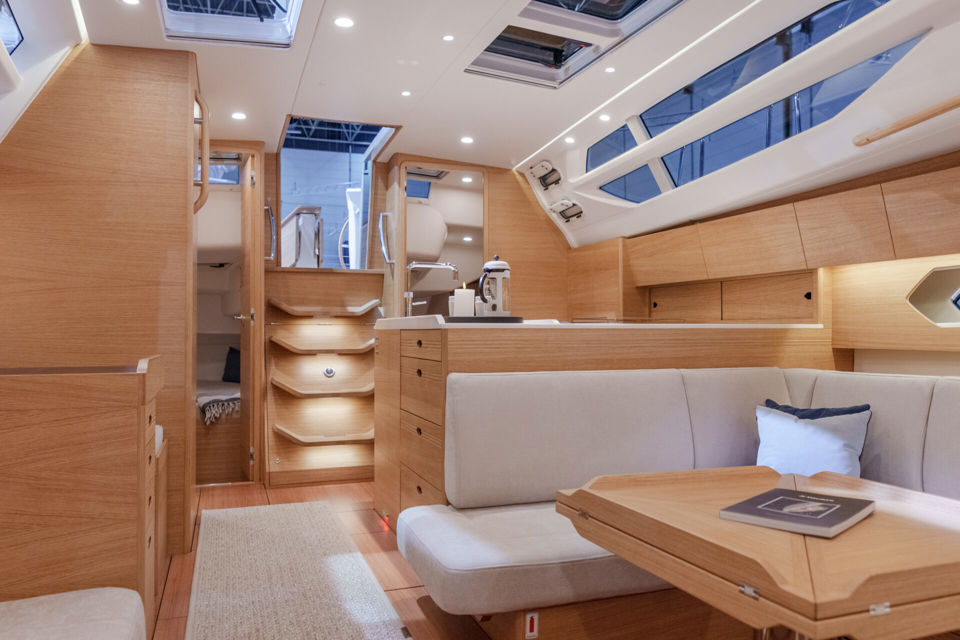

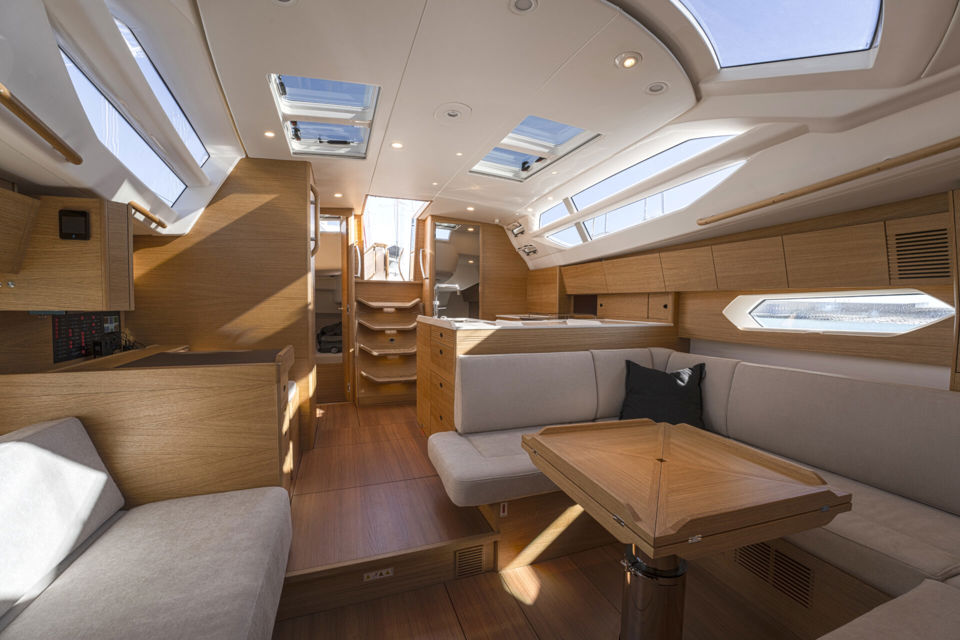

Boat Layout & Interior

Standard layout: 3 cabins, 2 heads

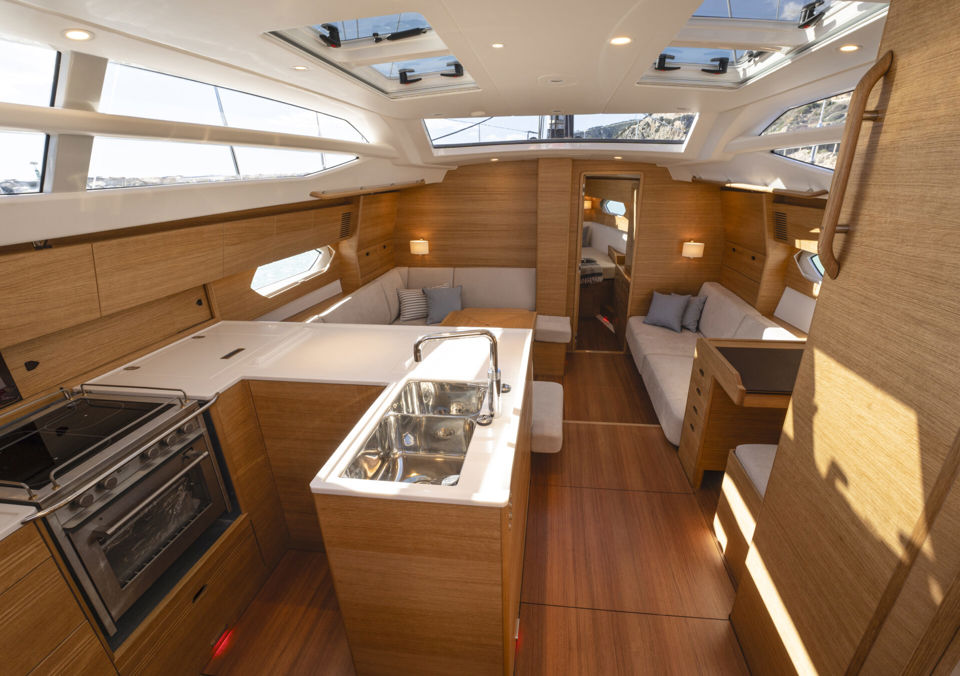

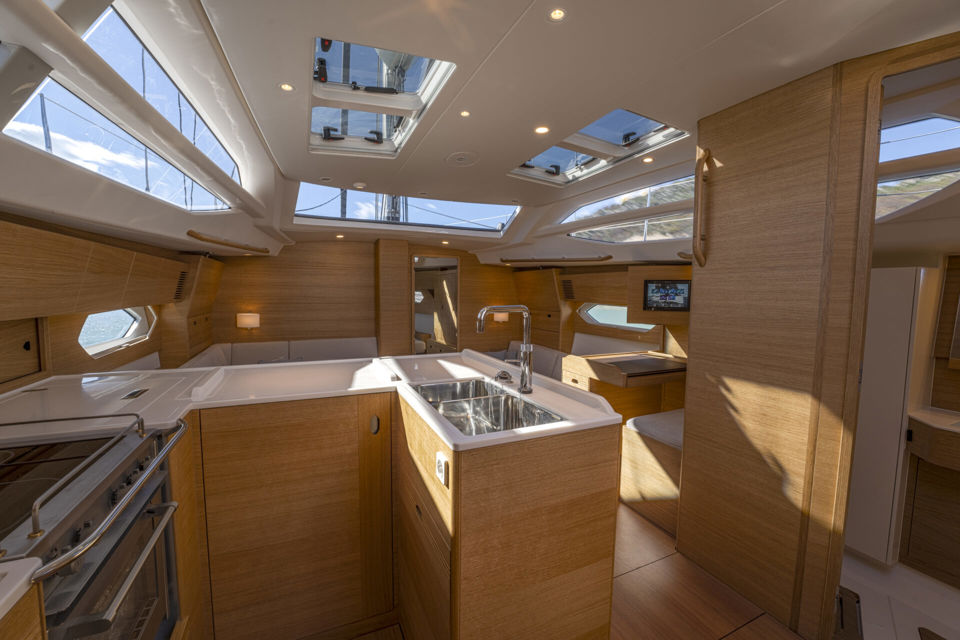

Galley with white Corian worktop
Fixed forward-facing navigation station

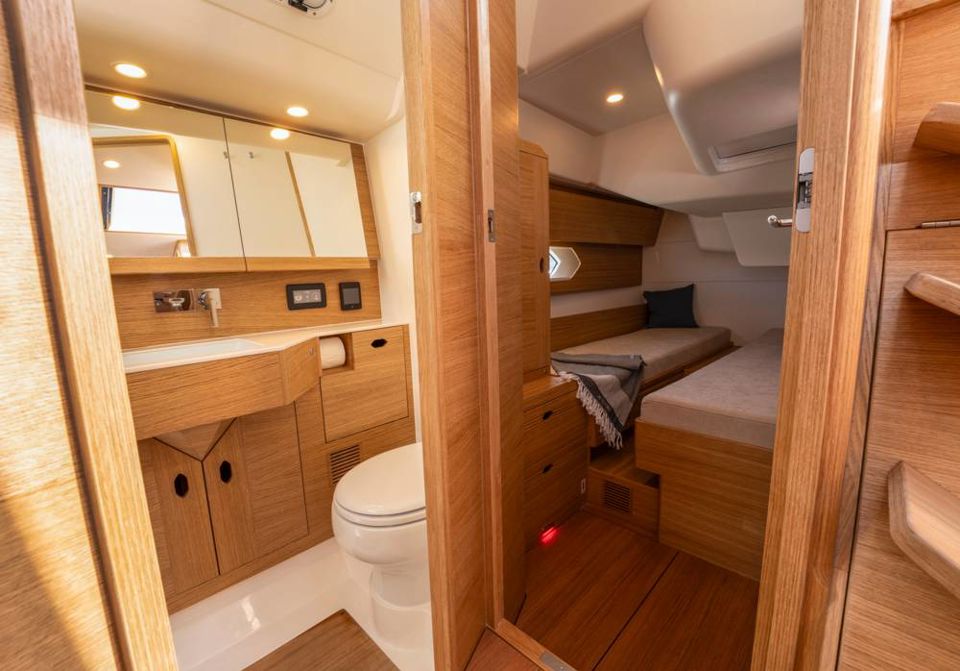

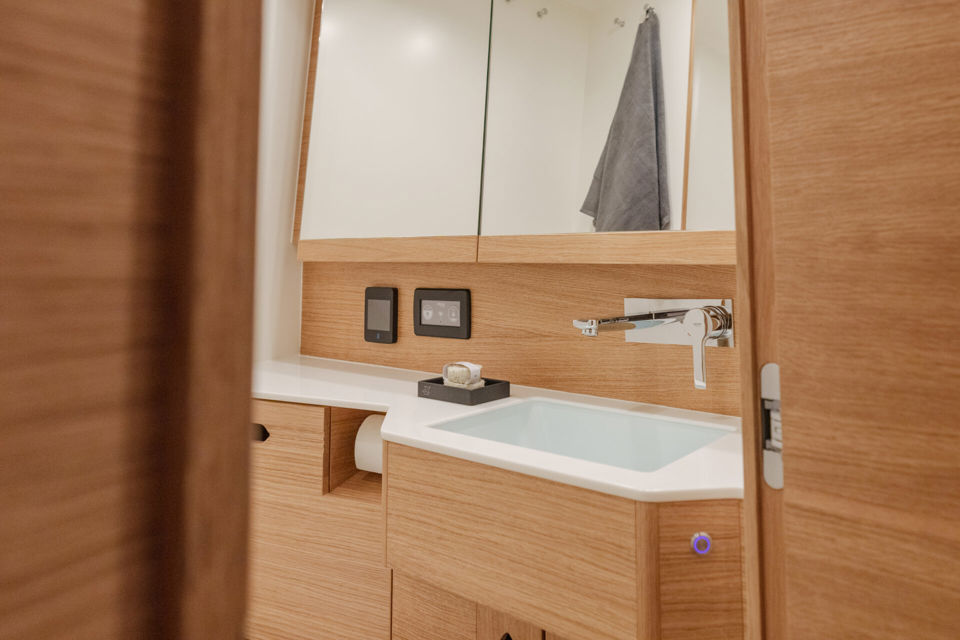

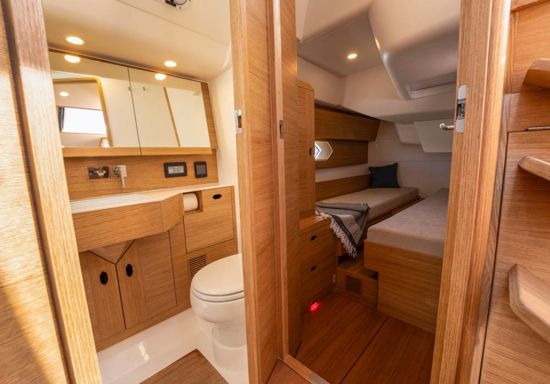

Dedicated aft shower compartment next to starboard aft head

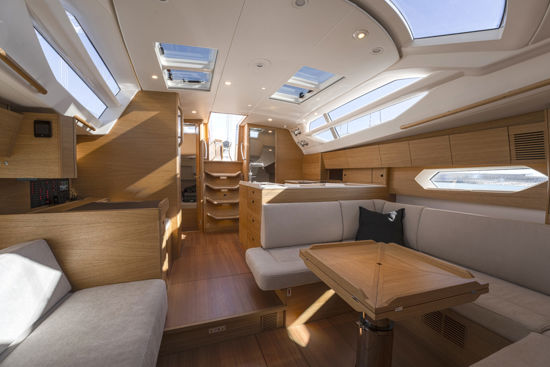

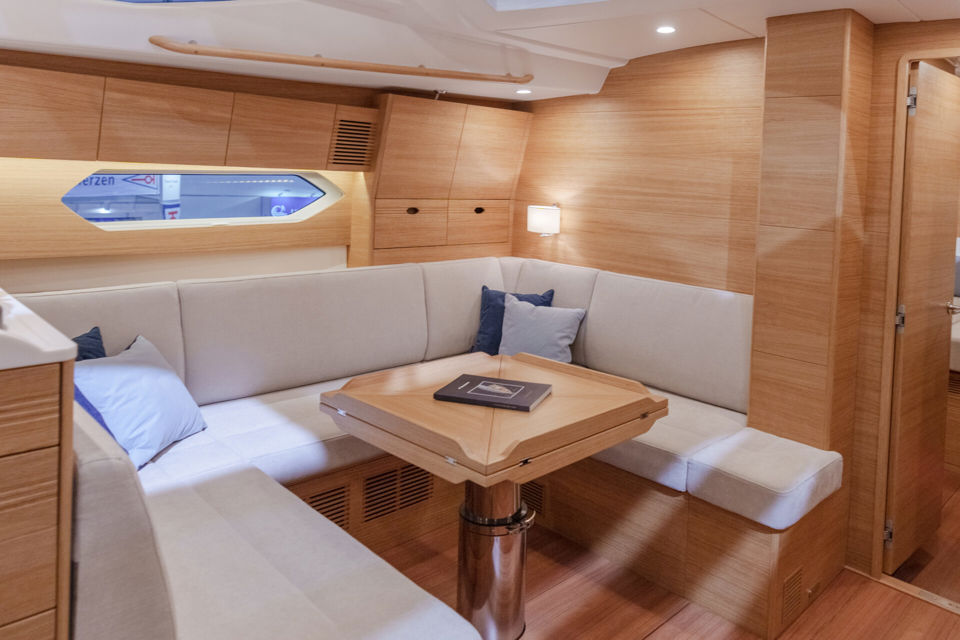

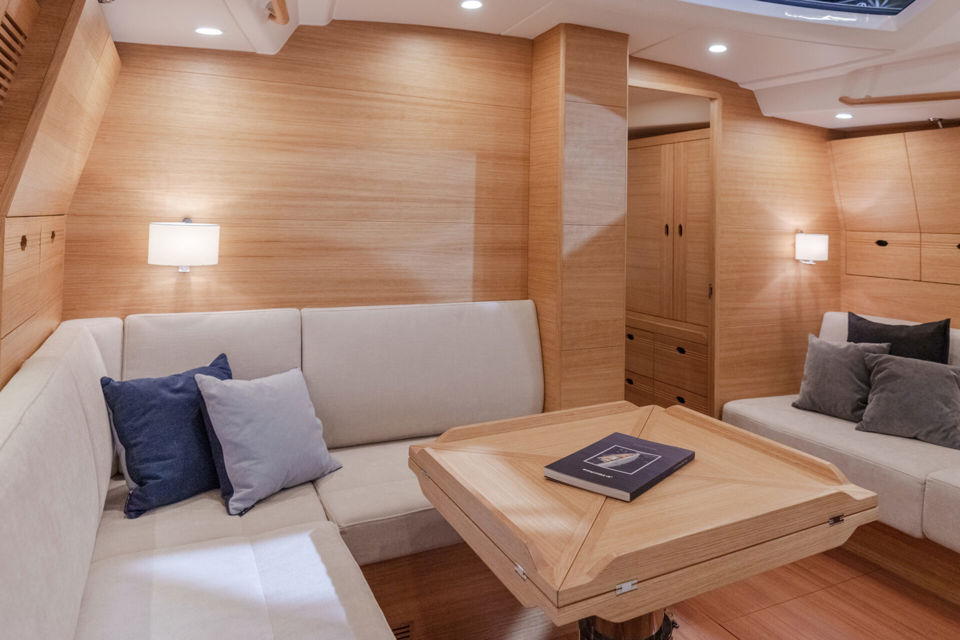

Large dining table
Veneer: Nordic Oak
Teak laminate floorboards (honeycomb core with marine plywood faces)

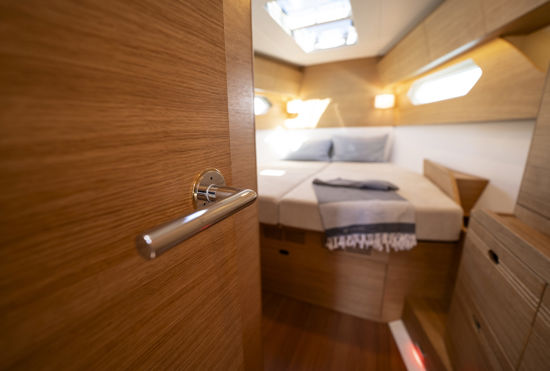

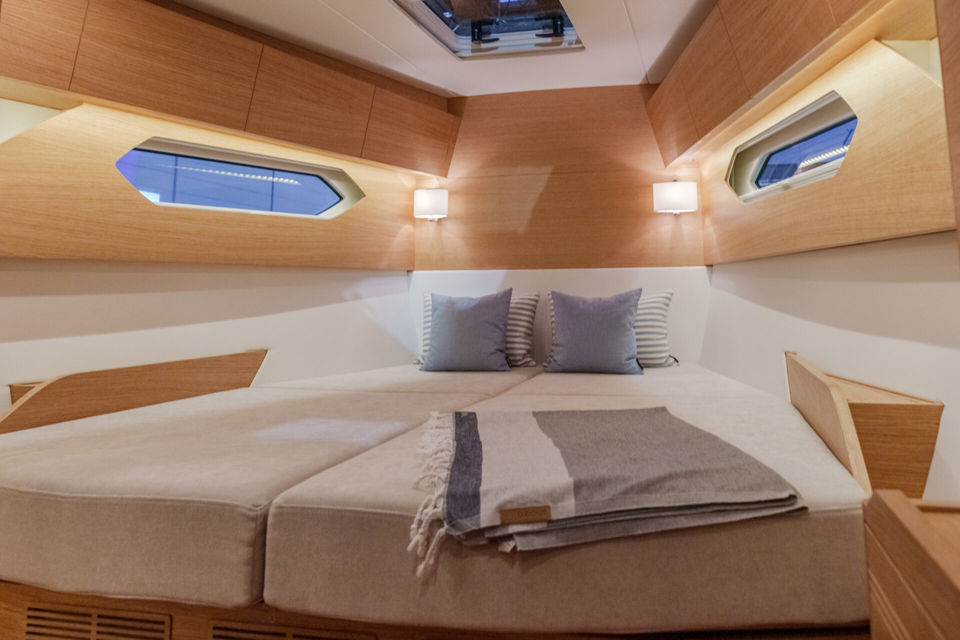

Spring mattress in owner’s cabin

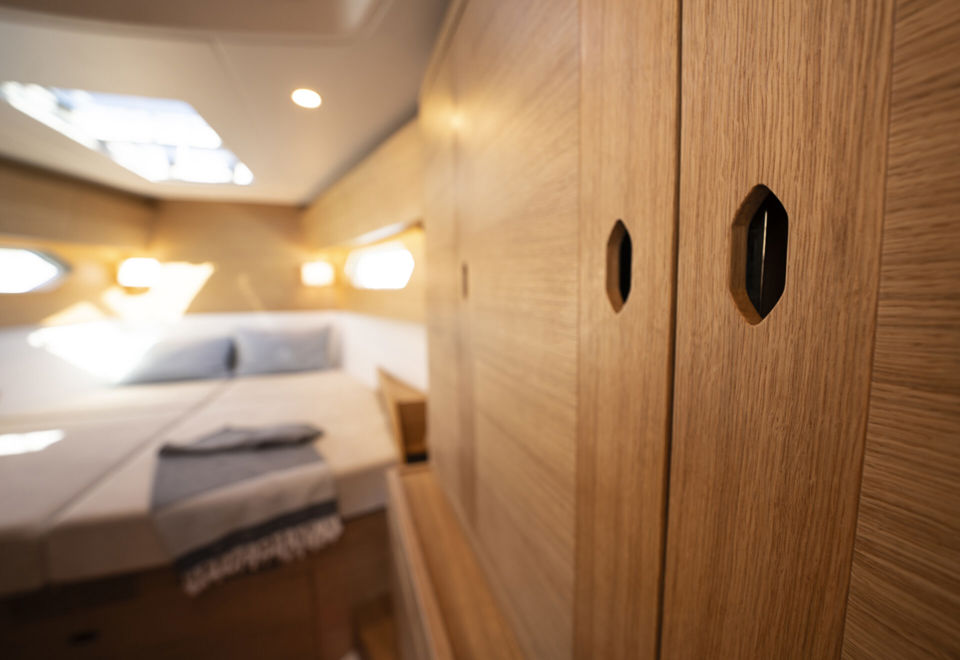

Owner’s cabin upper cupboards with hinged doors
Saloon table cushions

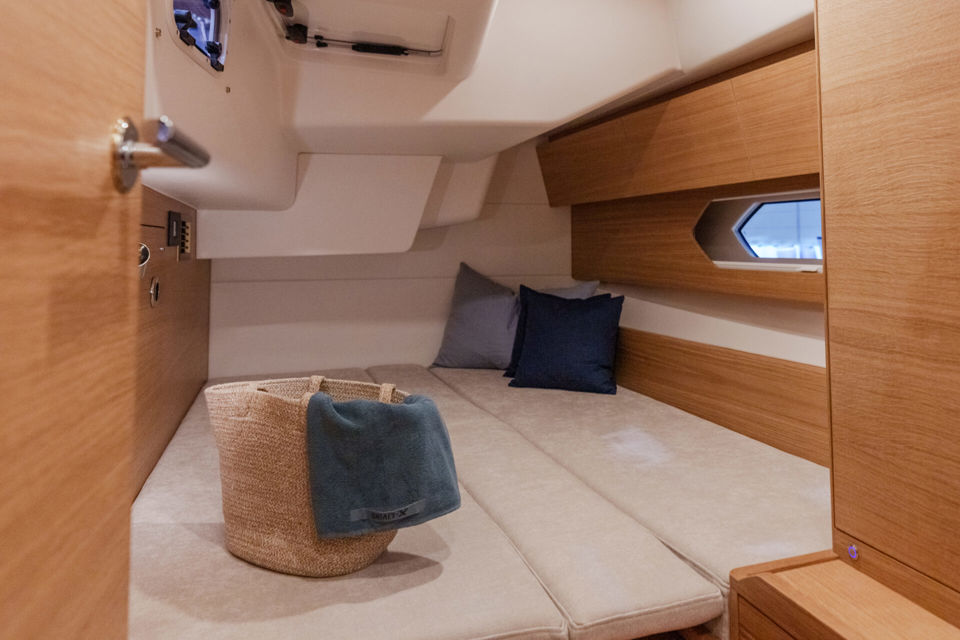

Aft cabin cupboards (Nordic Oak)
Wardrobe interior LED lights
Cockpit cushions, 6 cm thick with backrest
Upholstery: Saloon & cabins Nature
Canvas color: Dark Grey

Hull & Deck

Hull color: Light Grey (RAL7035) with Pure White waterlines (RAL9010)
Bottom treatment: White antifouling

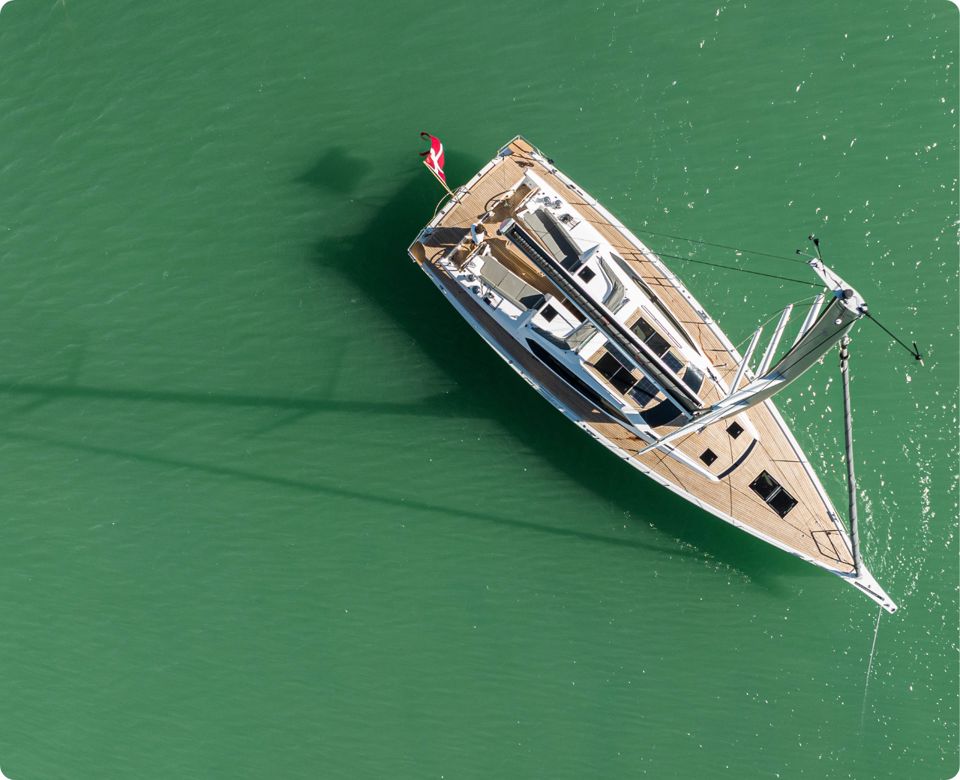

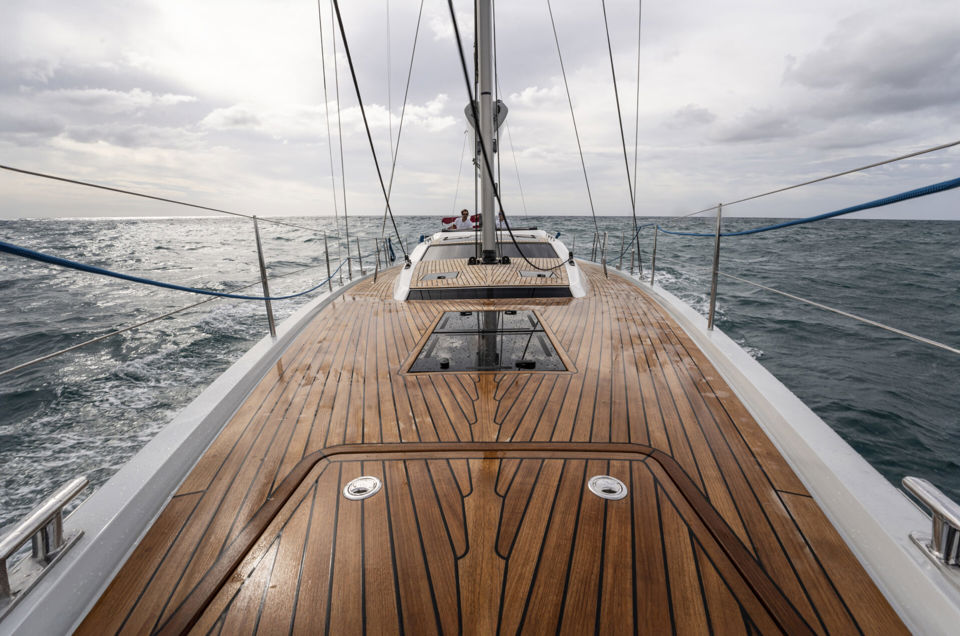

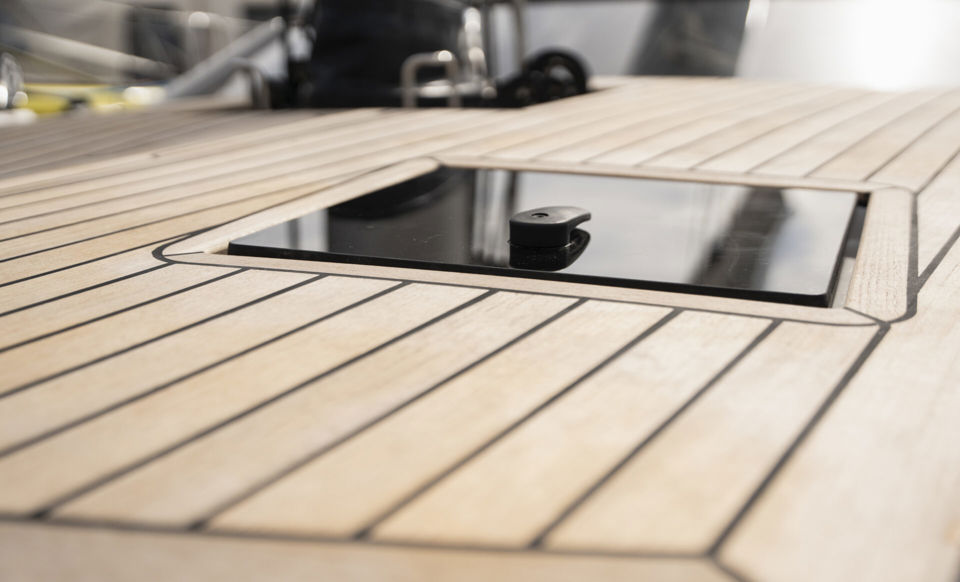

Teak on cockpit, side decks, and coachroof (vacuum applied, black caulking)
Cockpit: Deep, closed, wide coamings
Full-width cockpit bimini (canvas with stainless steel frame)
Standard sprayhood

Sail Handling & Rigging

Sails & Furling Systems
In-Boom Furling Mainsail
- Material: Epex DPI 28000, Double Taffeta, Cool Grey
- Area: 70.4 m²
- Full-batten design for improved sail shape and performance
- 2 reef points for easy sail reduction
- Furling system integrated into the boom for simple handling
- V-Furling boom with integrated cover and cockpit light
Furling Jib
- Material: Epex DPI 25000, Double Taffeta, Cool Grey
- Area: 53.1 m²
- 4 vertical battens for shape and durability
- UV-protective acrylic cover
- Fully furling system for safe and quick sail deployment and retrieval
Gennaker
- Material: Maxilite 150
- Area: 194.1 m²
- Color: Yellow
- Equipped with Oakley snuffer for easy hoisting and dousing
- Barberhaul system for precise sail trim and control
Code 0
- Material: Epex Film/Film DPI 10000
- Area: 114.7 m²
- Includes Bartels Furler Stainless IIII-P
- Ideal for light wind reaching courses
- Quick and safe furling and deployment
Additional Features for All Sails
- Electric gennaker furler for effortless handling
- Asymmetric spinnaker equipment includes sheets, blocks, cleats, and Wichard shackles
- All sails designed for shorthanded sailing, controlled from the cockpit
- Lines led to primary and secondary self-tailing winches for easy trimming
- Barberhaul systems and padeyes ensure precise sail control and safe operation
Asymmetric spinnaker equipment (sheets, blocks, cleats, shackles)
Electric primary and secondary winches

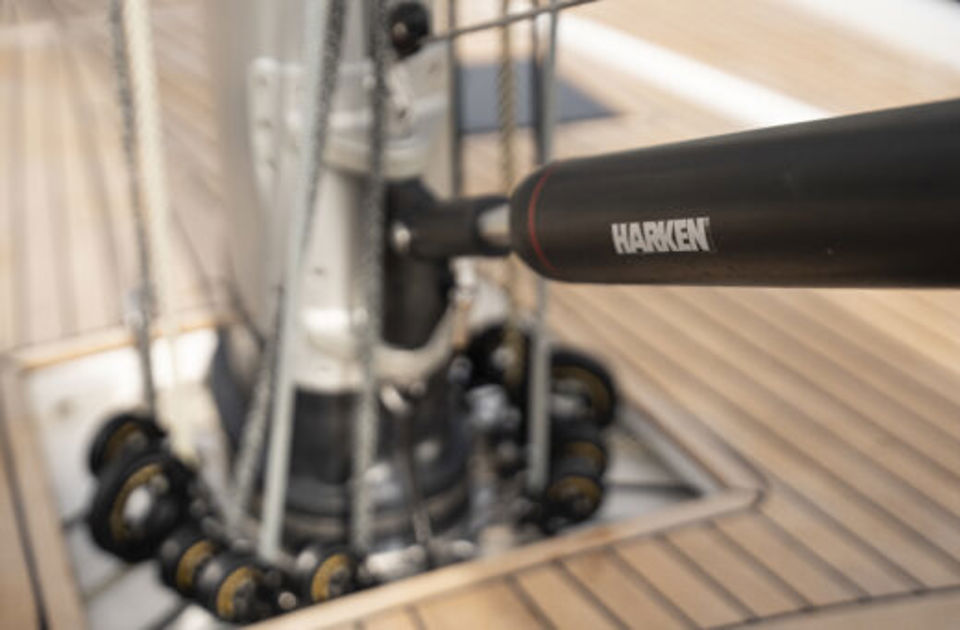

Hydraulic vang and backstay package with manual Harken pump
Mast steps (2 extra aluminum)
Integrated boom cover for V-Furling boom with cockpit light
LED tricolor & anchor lights at masthead
Electrical gennaker furler
