Experience Pure Sailing Pleasure – The X4⁶
Discover the ultimate family cruiser with the X4⁶, a 3-cabin, 2-head luxury yacht designed for performance, comfort, and style. With a split port aft berth, Nordic Oak interiors, and a modern galley with white Corian worktops, every detail exudes Scandinavian craftsmanship and elegance.
Built with a vacuum-infused epoxy hull and a Pure White finish with light grey waterlines, the X4⁶ combines strength, safety, and sleek aesthetics. The deck layout is intuitive, featuring a self-tacking jib, recessed mainsheet traveller, flush hatches, and a teak cockpit with removable table. Comfort meets performance with optional electric winches, sprayhood, bimini, and an electric teak bathing platform.

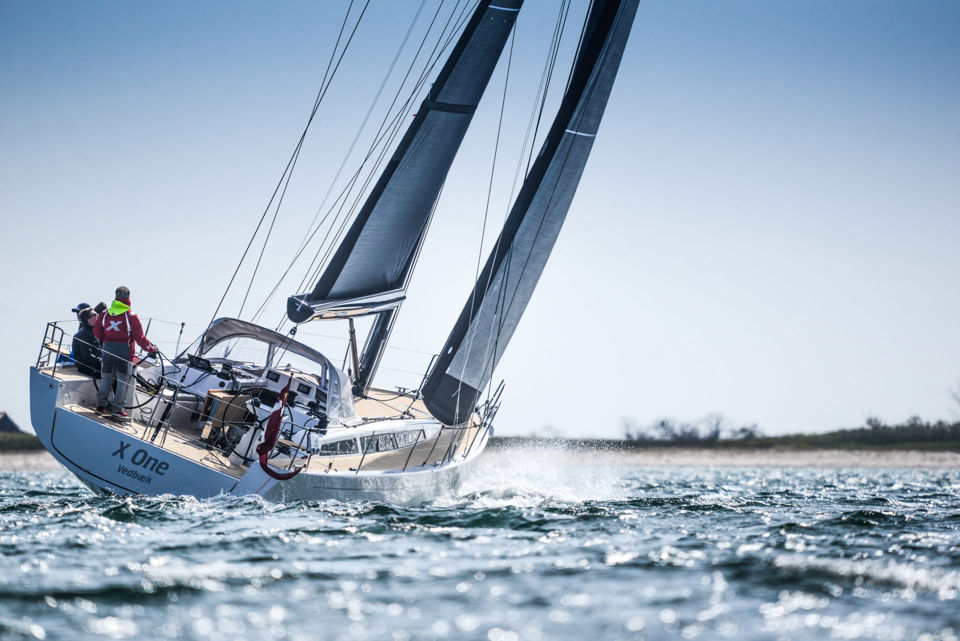

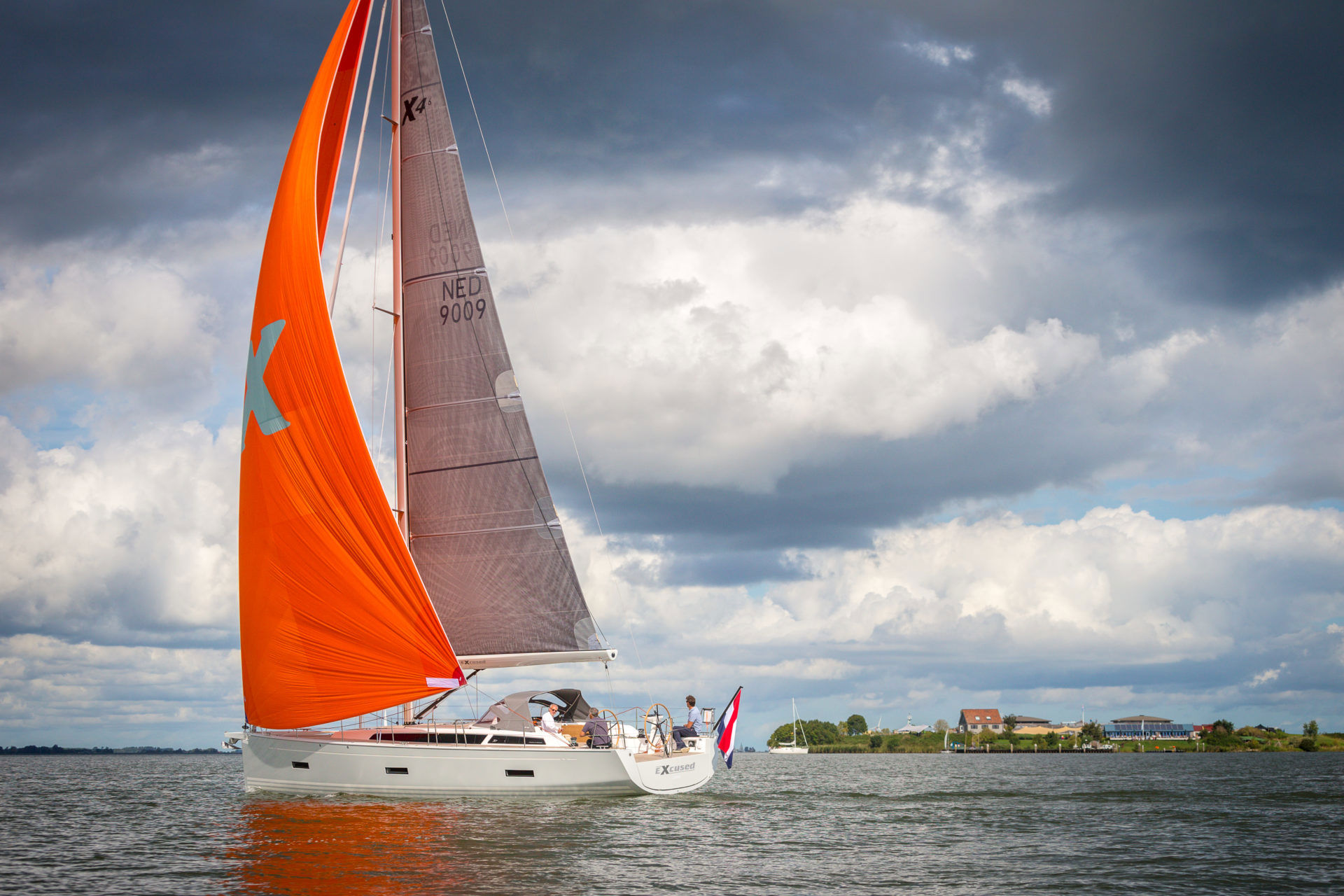

Under sail, the fractional triple-spreader rig with Elvstrøm mainsail and furling jib ensures effortless handling, while the 2.30 m “T” keel and carbon composite dual steering wheels provide precision and control.
The upgraded Yanmar 80 HP engine with 3-blade folding propeller, retractable bow thruster, and extensive comfort systems—including heating, AC, freshwater, and high-end electronics—make long passages a joy.
Whether exploring coastal waters or crossing oceans, the X4⁶ combines superior sailing performance with refined luxury, offering a truly unforgettable experience.
Price excludes VAT !
Specification
2026
6-8
14.08 m / 46'2''
X-Yachts Design Team
14.08 m / 46'2''
12.33 m / 40'5''
4.27 m / 14'0''
2.30 m / 7'7''
10900 kg / 24030 lbs
41.9 kw / 57 hp
280 L / 74 gal (US)
360 L / 95 gal (US)
YANMAR 80 HP (59 kW)
Inventory

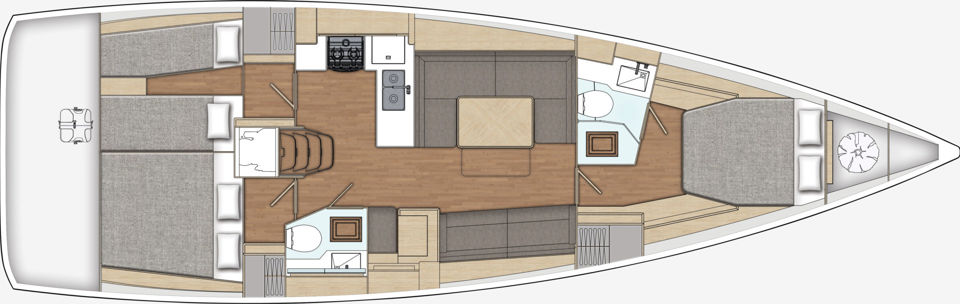

Version: 3 Cabins, 2 Heads with Split Port Aft Berth
Nordic Oak veneer throughout,
galley with white Corian worktop,
fixed forward-facing navigation table station,
large dining table.
Hull & Deck
Construction: Vacuum-infused, post-cured epoxy hull, gelcoat finish
Hull Colour: Pure White (RAL 9010) with 3 Light Grey (RAL 7035) integrated waterlines
Large Hull Portlights: Grey tinted laminated toughened glass (6 pcs)
Bathing Platform: Teak, electrically operated, with integrated “hang-on” ladder
Deck Teak: Vacuum-applied, 9mm thick, black caulking
Hull Treatment: 3 layers epoxy primer + 2 layers White Hempel Hard Racing Antifouling
Cockpit & Exterior
Cockpit Table: Removable teak table, canvas cover (Light Grey), two stainless steel legs, central GRP bottle box
Cockpit Cushions: 6 cm thick, Light Grey canvas, alloy track mounting
Self-Tacking Track: Recessed 42 mm curved track, Toulon ball bearing traveller
Mainsheet Winches: 2 × Harken Performa 46.2 STP two-speed self-tailing
Electric Winch: 1 × Harken Performa 46.2 STP, port side (optional additional)
Optional Additional Sheet Winches: 2 × Harken Performa 50.2 STP (requires longitudinal genoa sheet tracks)
Flush Deck Hatches: 9 pcs (GRP + frameless hatches)
Portlights: 7 × openable coach roof portlights for ventilation
Sprayhood & Bimini: Light Grey canvas with stainless steel frame, full width forward & aft
Anchoring & Mooring
Anchor: 25 kg Delta galvanised (upgrade from 20 kg)
Anchor Chain: 50 m, 10 mm calibrated galvanised
Windlass: Electric with secondary remote & chain counter
Mooring Cleats: 2 stainless steel amidships
Boarding Gates: 3 per side in guardrails
Bow Sprit: Painted carbon fibre for asymmetric spinnaker, color-matched to hull
Rigging & Sails
Rig: Fractional triple spreader, LED tricolour & anchor light
Vang: Gas cylinder upgrade
Lazy Bag System: On mast & boom
Furling Headstay: Furlex 304 TD, under-deck drum
Rod Rigging: Discontinuous, tip cups, racing Rod turnbuckles
Halyards: Dyneema SK78
Sails:
Mainsail: Elvstrøm EPEX®, 64 m², 5 battens, Cool Grey
Furling Jib: Elvstrøm 103%, 50 m², Cool Grey
Keel & Steering
Keel: Standard 2.30 m “T” keel, antimony-hardened lead T-bulb, cast iron fin, epoxy encapsulated
Steering Wheels: 2 × Carbonautica black composite wheels
Pedestal Platforms: Medium mount, stainless steel grab rail, optional autopilot/plotter/thruster controls

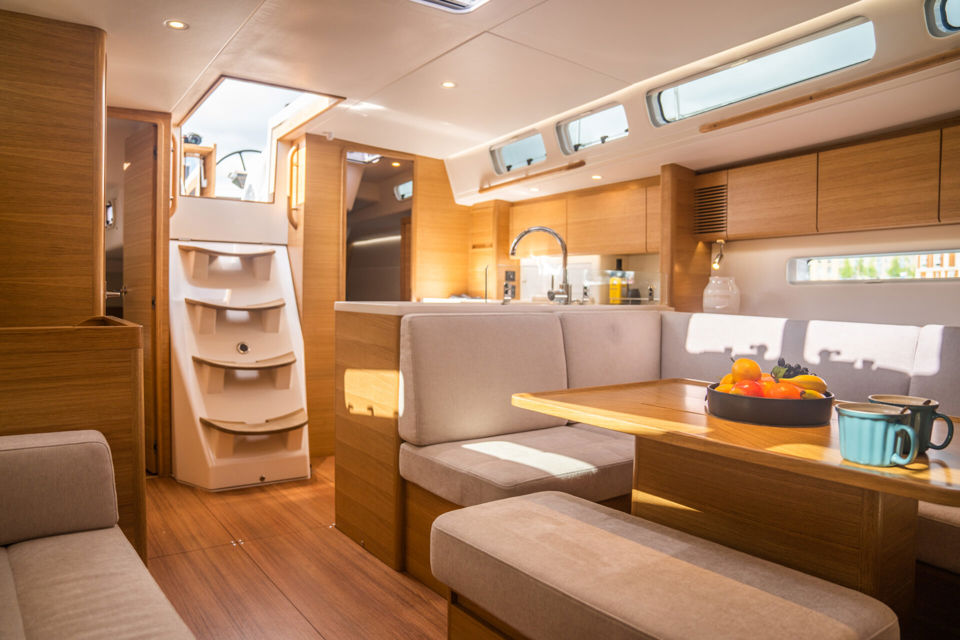

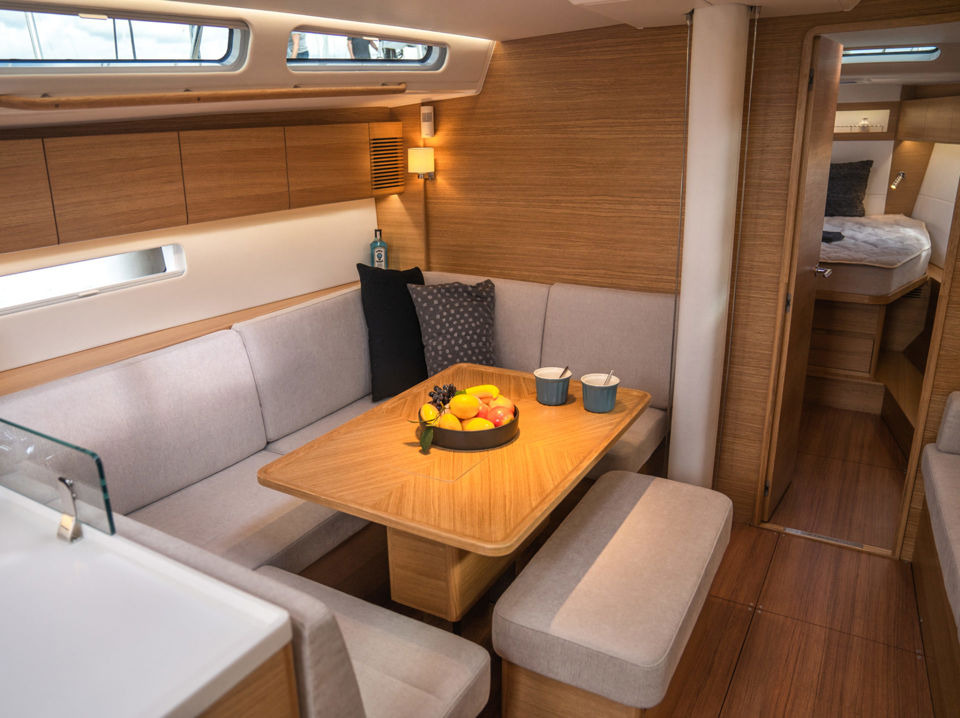

Interior Layout
Cabins: 3
Heads: 2 (aft & forward)

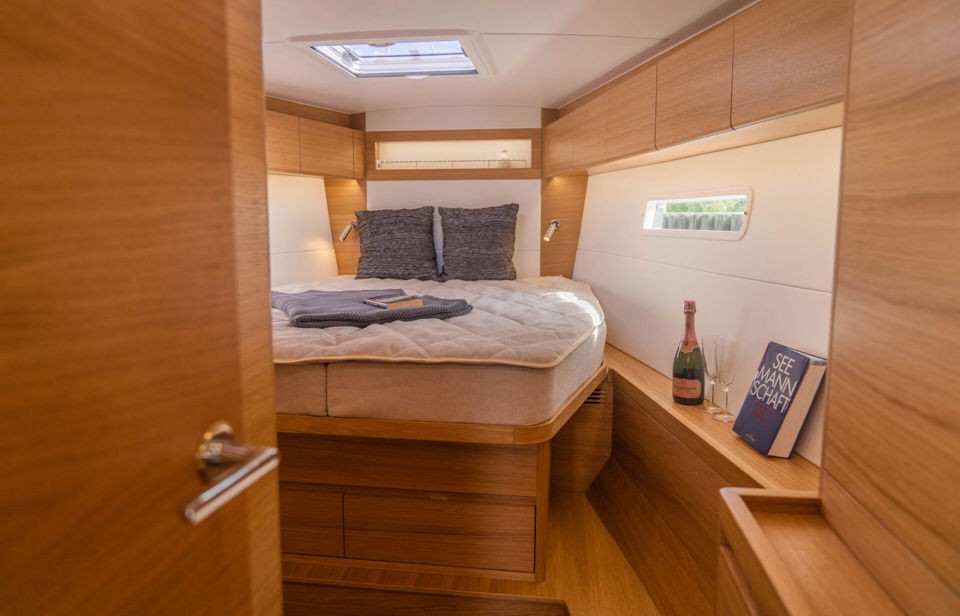

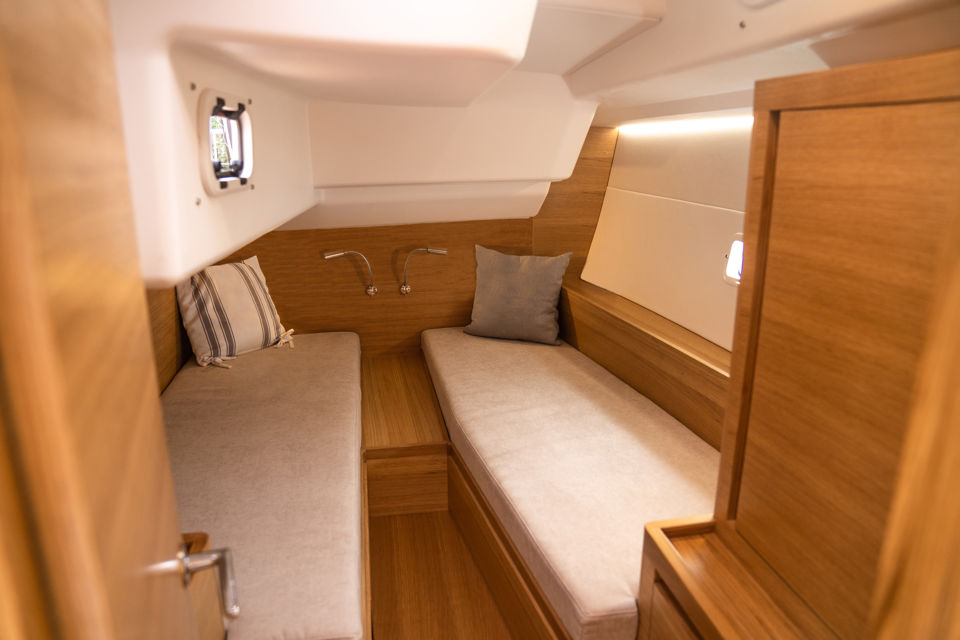

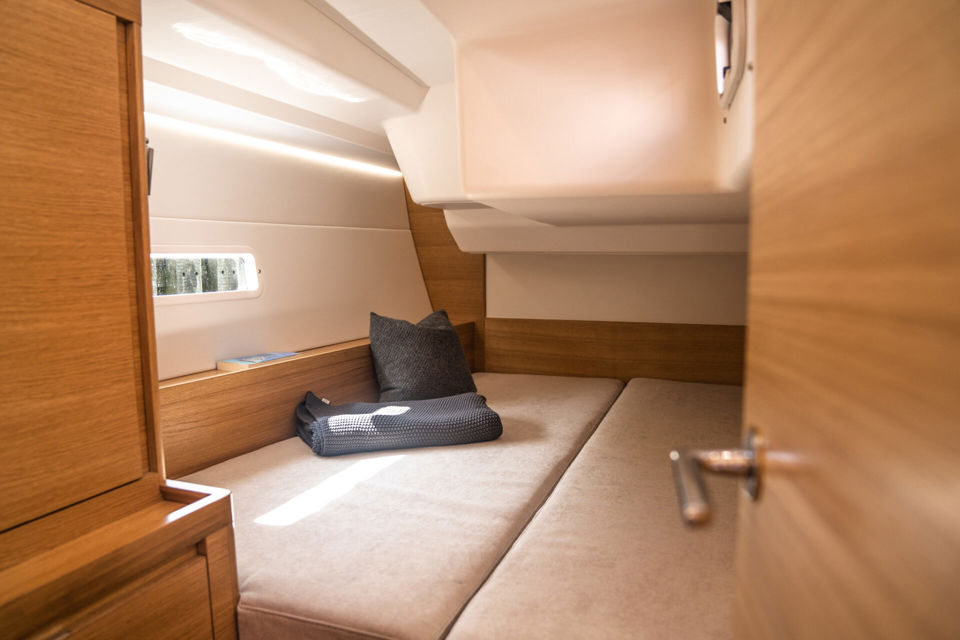

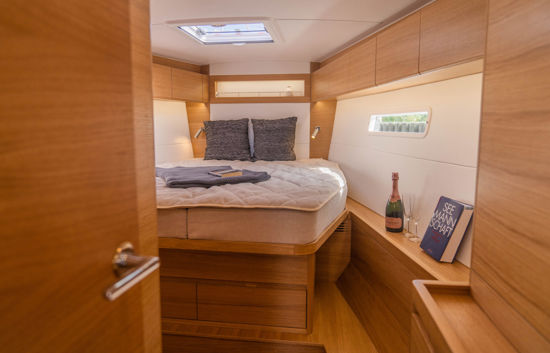

Berths: Split port aft, double berth with gas strut & drawers
Sofa: Long starboard side
Cabin Storage: Upper cupboards, accessory shelves, table/drinks box in dining table
Navigation Station: Forward-facing, room for 9” plotter, VHF, music, heater control

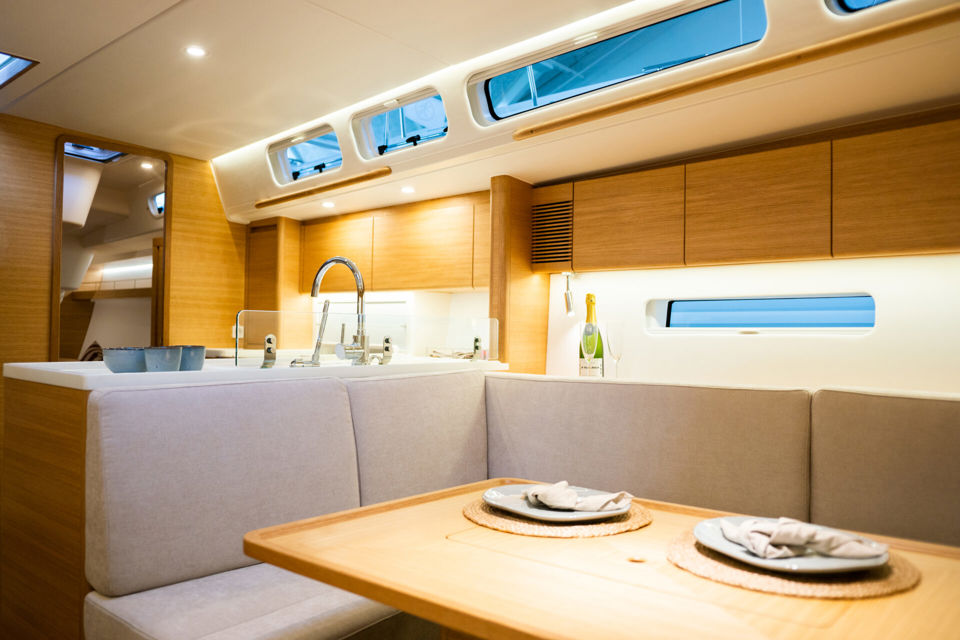

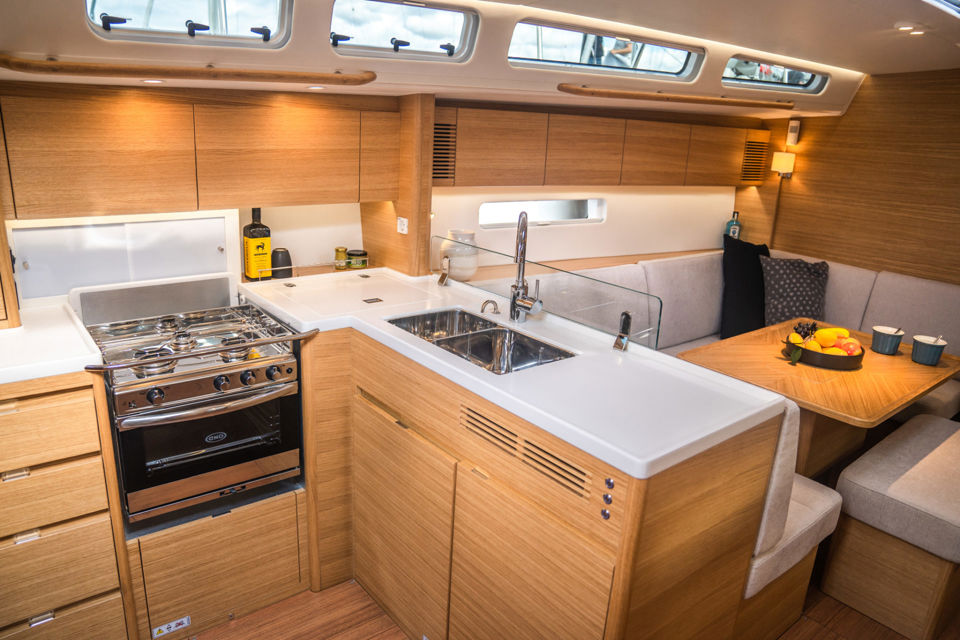

Galley:
White Corian worktops
Frigoboat MS 80 L fridge
Optional Isotherm Magnum fridge/freezer
Removable Corian worktop over oven
Comfort & Systems
Heating: Eberspächer Airtronic 3 D6L, 6 outlets
Air Conditioning: 1 × 7000 BTU in owner’s cabin, 1 × 7000 BTU in main cabin (shore or generator power)
Water System: 350 L freshwater tank, 24 L hot water tank, pressurised hot & cold water, deck shower
Holding Tanks: 2 × 55 L, emptying via sea cock or deck suction
Seawater Tap & Deck Rinse: Electric pumps
Electrical:
50A charger & 312 Ah 12V service bank
Additional service battery (optional)
12V/2000W inverter/charger
Socket package: 230V AC, USB, 12V cockpit & cabin
Electronics & Multimedia
Fusion Apollo MS-RA800 Media Centre: Main cabin
Speakers: 2 × main cabin, 2 × cockpit
Autopilot: Basic setup included
Plotter: 9” at navigation station
Electronics Commissioning: Depth, speed, wind calibration
Engine & Propulsion
Main Engine: Yanmar 80 HP CR (upgraded from 57 HP), FOF 3-blade folding propeller
2-Blade Folding Propeller: Ø 20”
Fuel Tank: Aluminium, 280 L
Retractable Bow Thruster: Max Power CR70/12V, dedicated battery
Safety & Accessories
Fire Extinguishers: 4 × 2 kg powder
Fire Blanket: Galley
Additional Fender: White, air-filled with X-Yachts logo
Mooring & Pad Eyes: Additional foldable Wichard pad eyes in cockpit
Transport & Delivery
Export Documentation: EU1/EX1/CO1/EUR1/A.TR/T2L
Launching & Rigging: At X-Yachts marina, full fuel tank
Transport: Shrink-wrapped, polyester strap package
DAP Split Delivery
